XENX

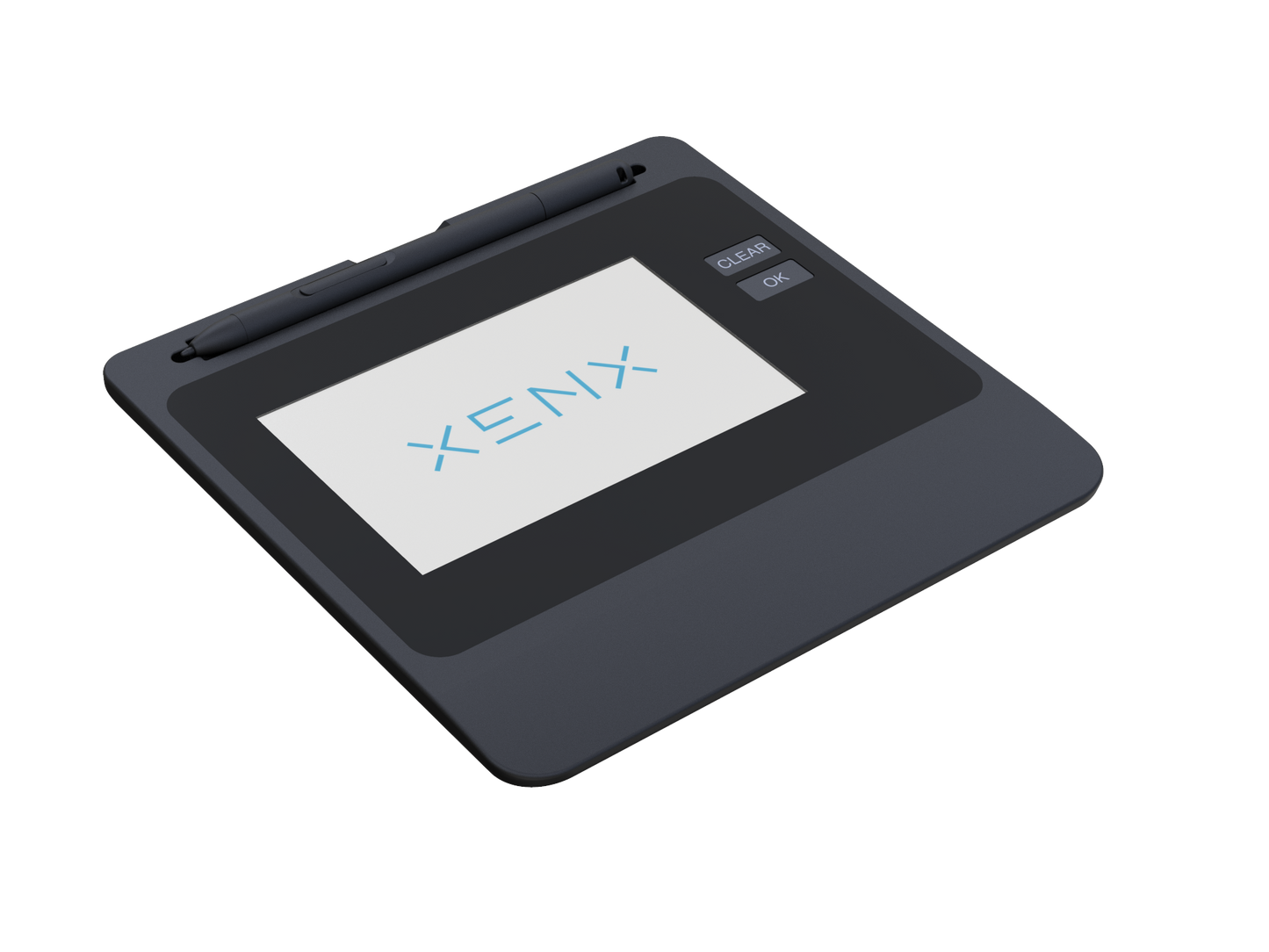

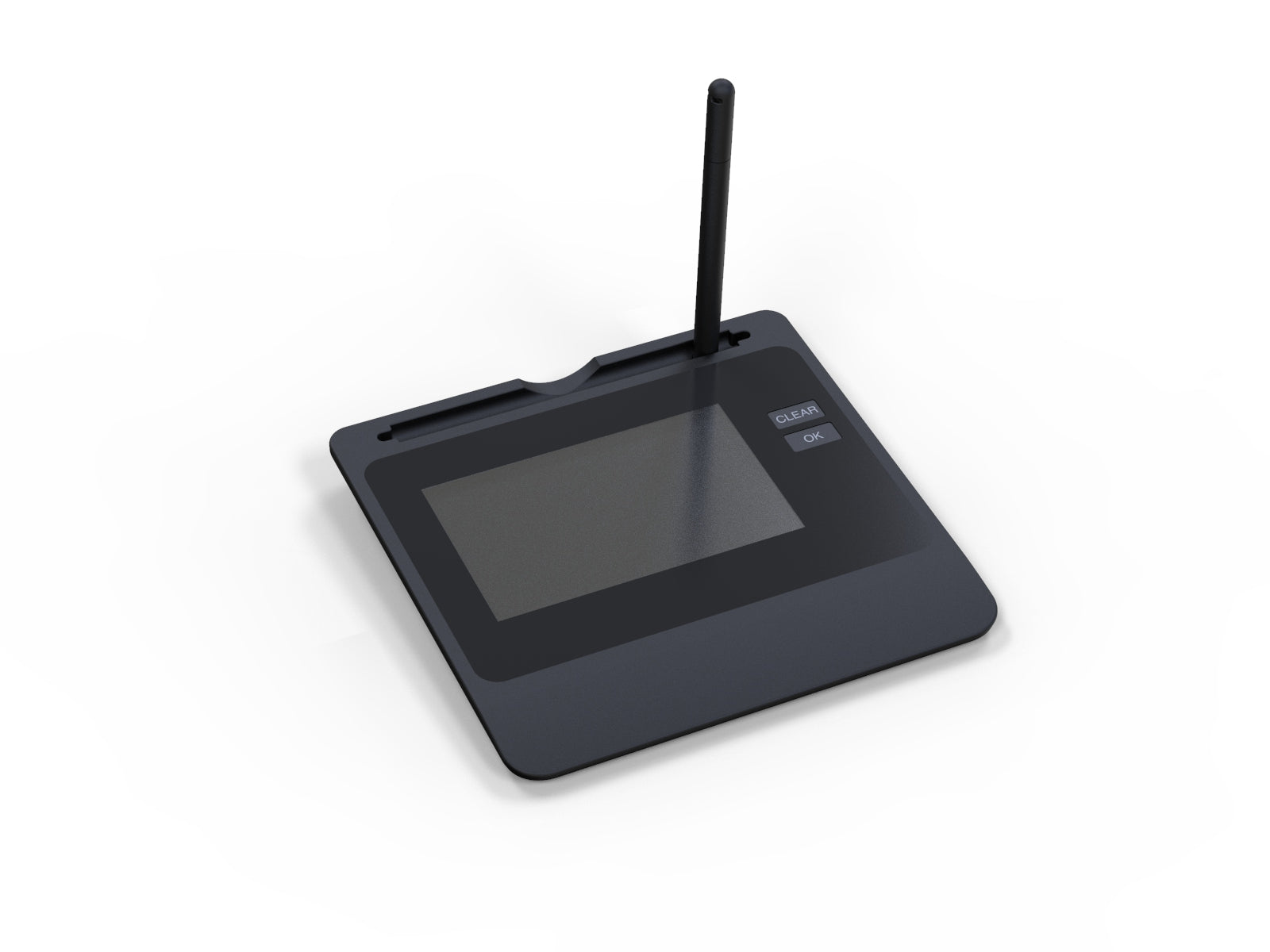

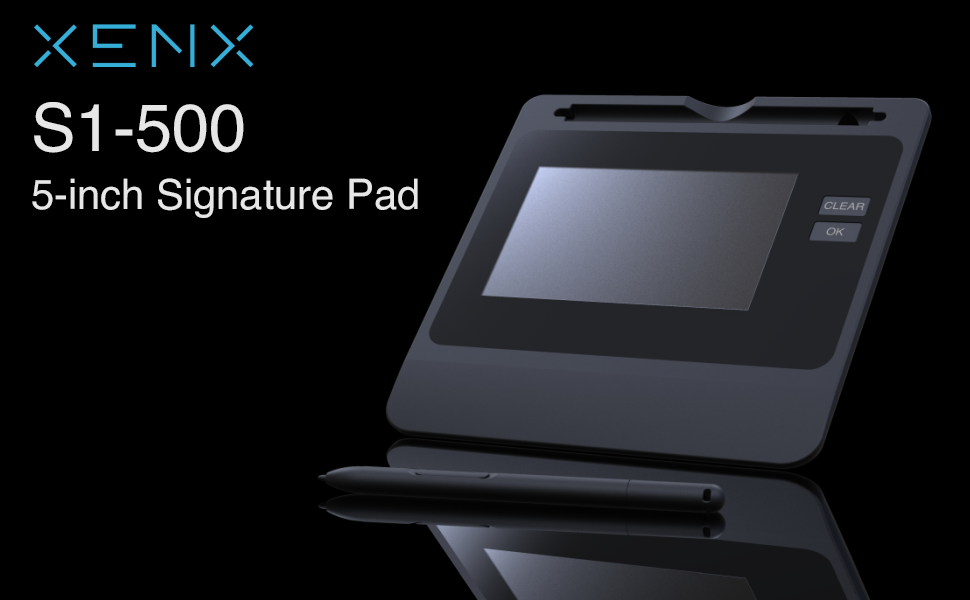

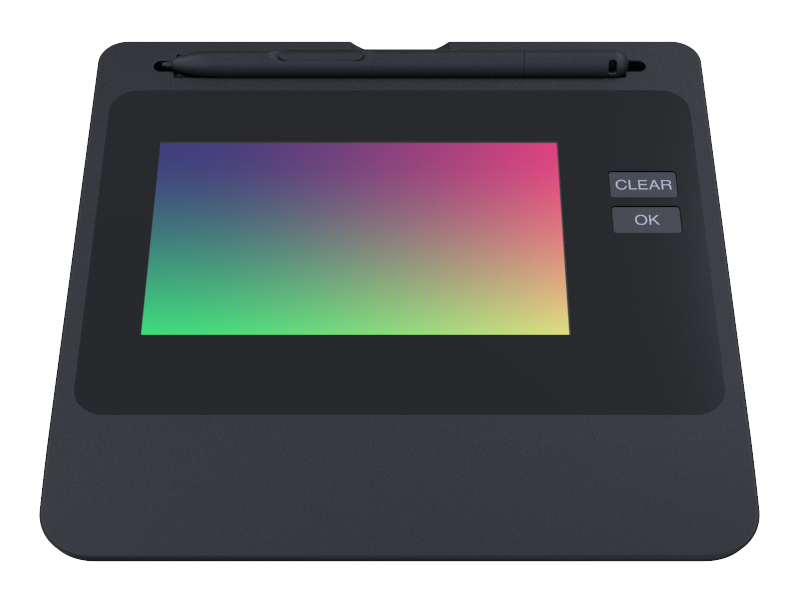

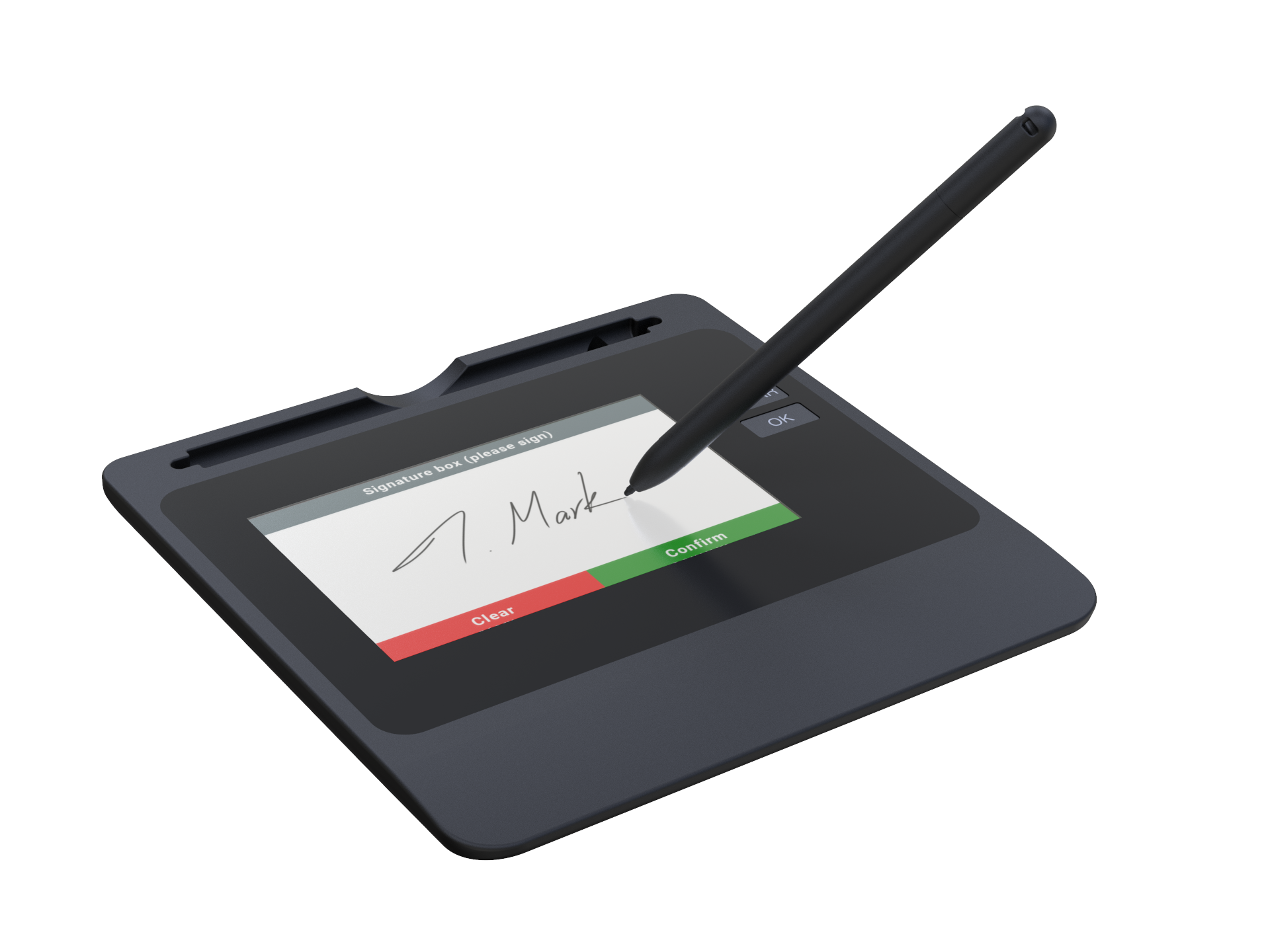

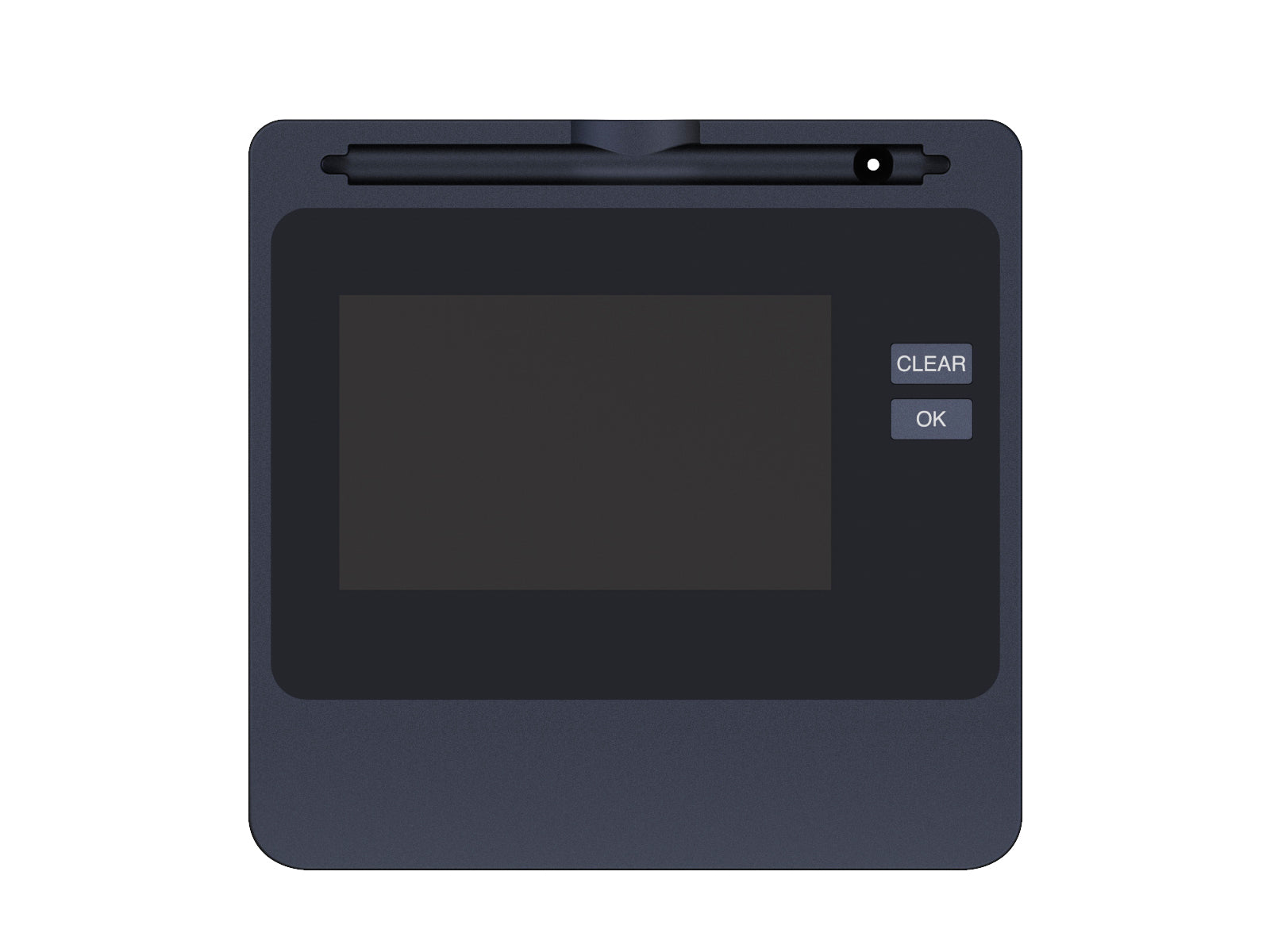

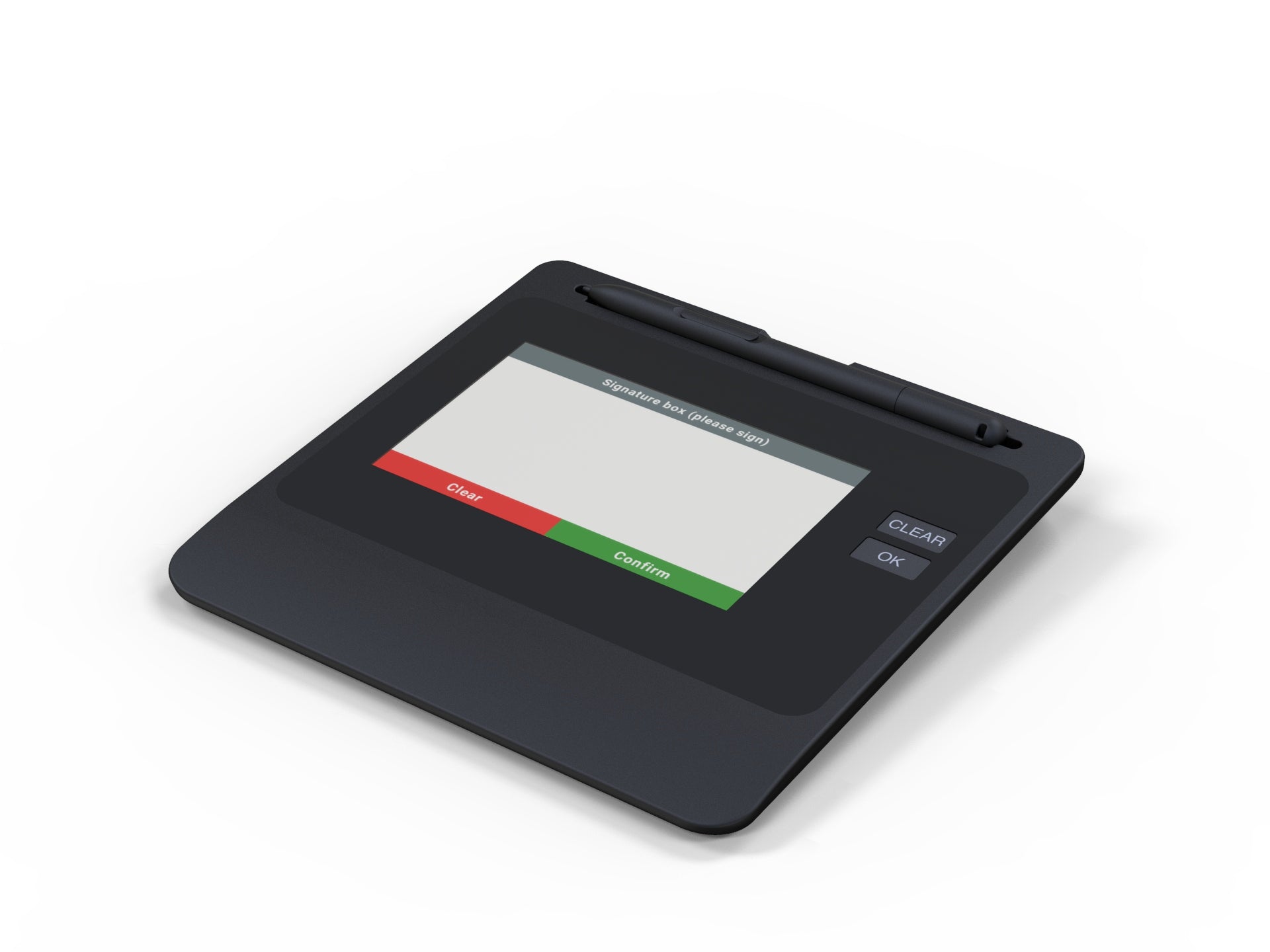

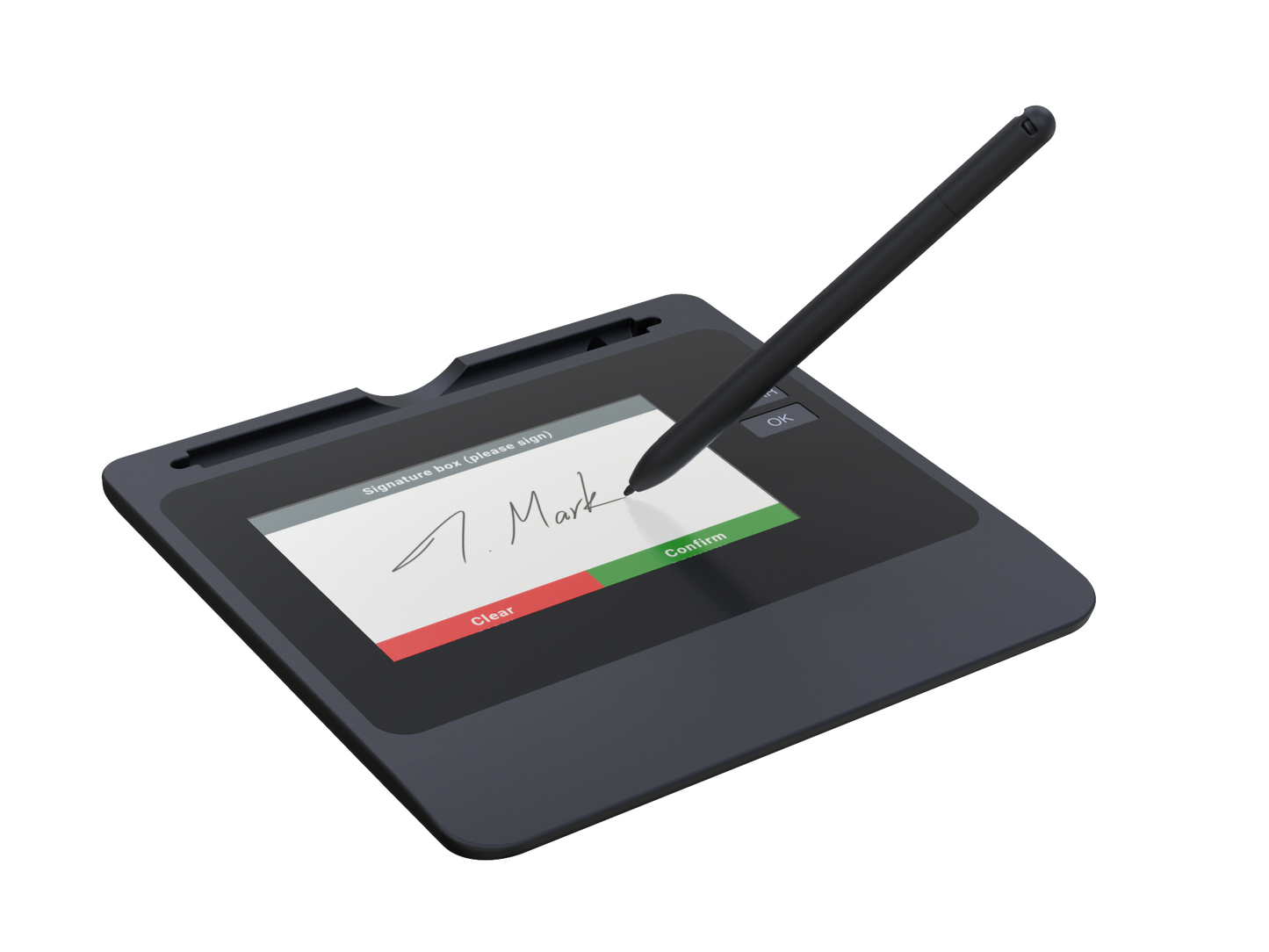

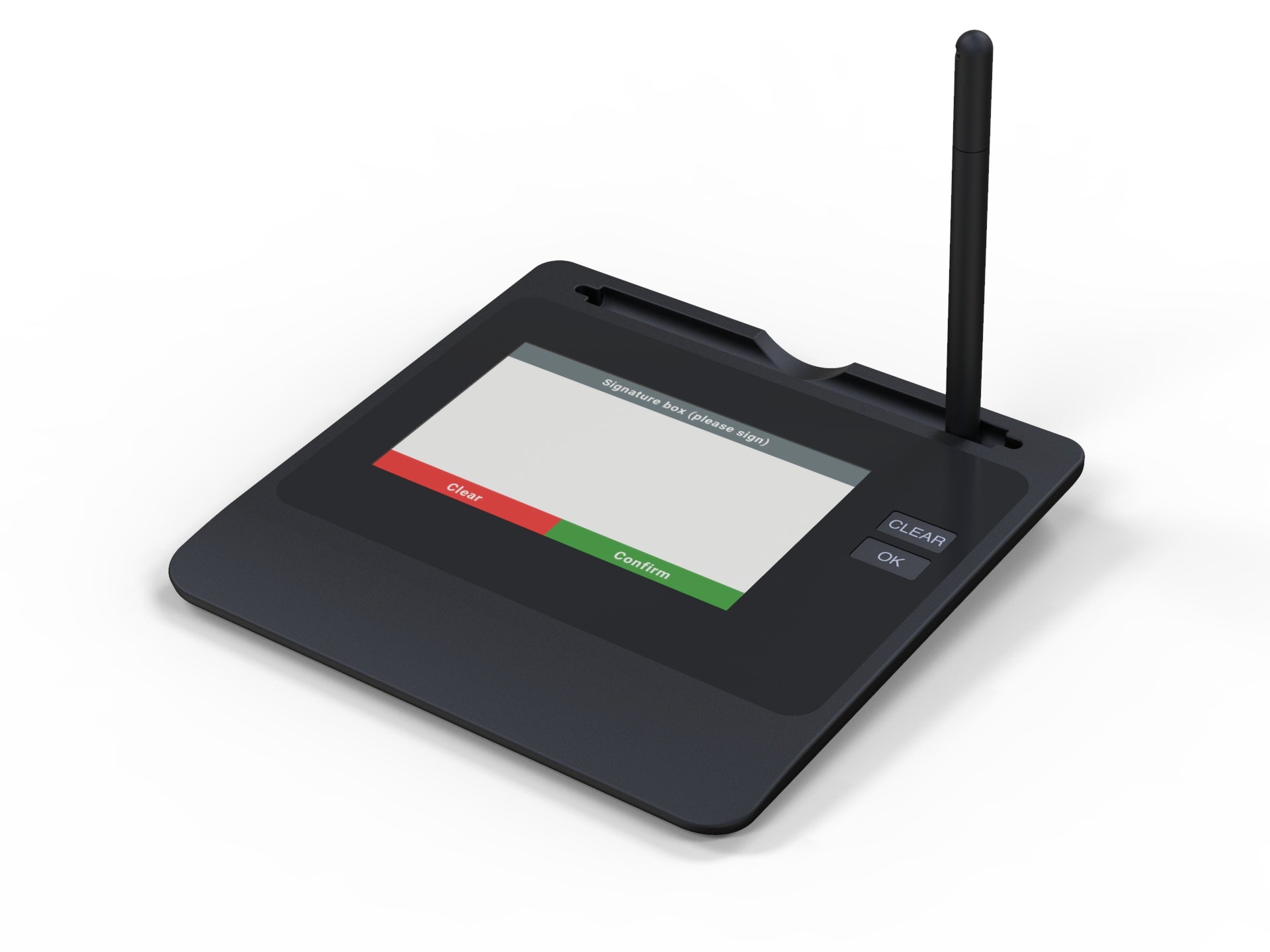

S1-500 5-inch Signature Pad

S1-500 5-inch Signature Pad

Regular price $199.00 USD
Regular price Sale price $199.00 USD
Sale Sold out
Shipping calculated at checkout.
XENX S1-500 is a reliable and durable signature pad that helps you capture handwriting signature in biometric format.

EMR Technology
XENX S1-500 uses electromagnetic resonance technology as the pen input sensor. Unlike other resistive sensors which are attached on top of the LCD display, the EMR sensor board is installed under the LCD display and hence pen will not directly scratch the sensor.

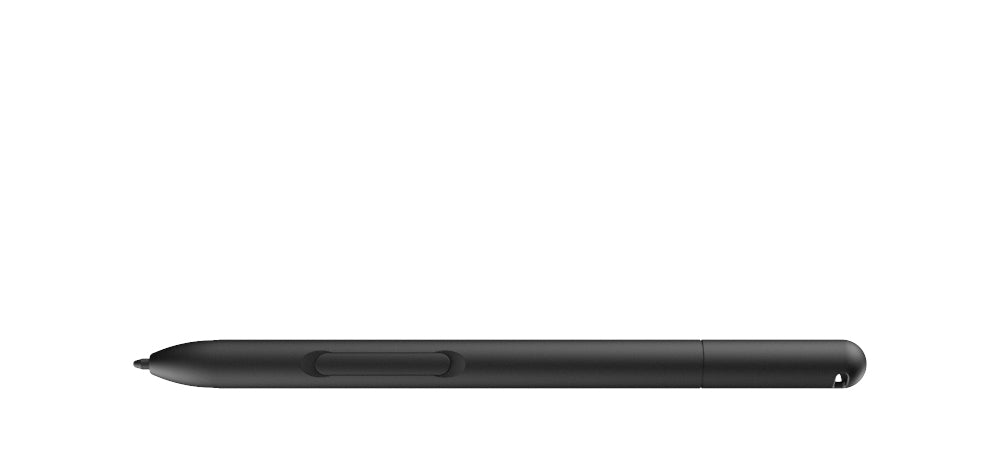

Battery-free Pen
Thanks to EMR technology, XENX digital pen does not require battery to operate and there is no electric wire connecting the pen to the signature pad.

Highly accurate
XENX S1-500 provides 8192 levels of pen pressure together with 266 points per second report rate. The resolution of the EMR sensor meets 2540 lines per inch (100 lines per millimeters).

Color Display
Contrast to other monochrome signature pad, S1-500 supports true color image that can help enterprises placing promotional materials on screen.

Developer SDK
Powerful SDK is available for developer to integrate their own signature solution.

Signature Verification (Optional)
With Dynamic Signature Verification (DSV), the captured biometric signature data is automatically verified dynamically against signature specimen stored encrypted in the systems database.

Shipping & Returns

Dimensions

207 x 115 x 7 mm

Care Instructions

View full details

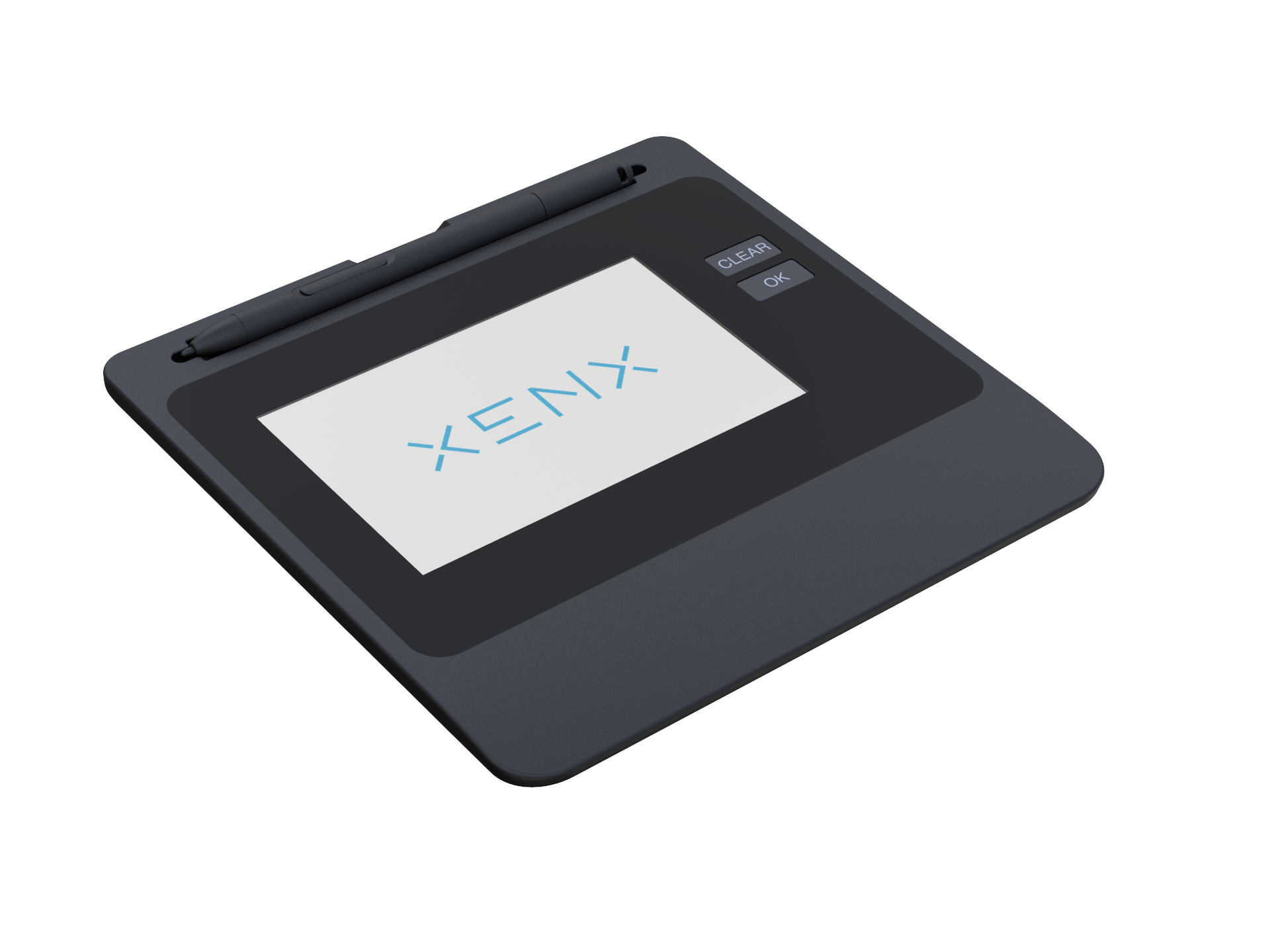

XENX S1-500 Signature Pad

XENX S1-500 is a reliable and durable signature pad that helps you capture handwriting signature in biometric format.

* XENX S1-500 is not a plug and play device. Please contact our support team before you place your order.

dev@xenx-tech.com

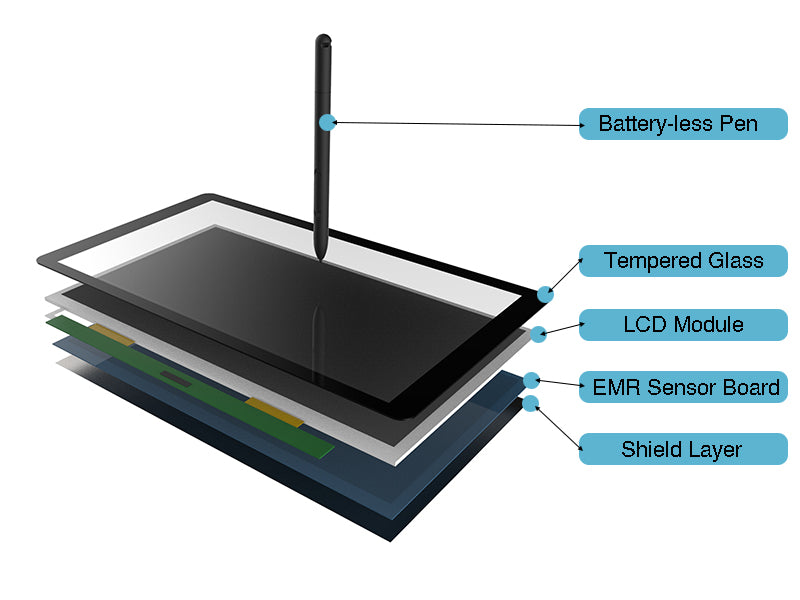

XENX Electromagnetic Resonance

EMR Technology

XENX S1-500 uses electromagnetic resonance technology as the pen input sensor. Unlike other resistive sensors which are attached on top of the LCD display, the EMR sensor board is installed under the LCD display and hence pen will not directly scratch the sensor.

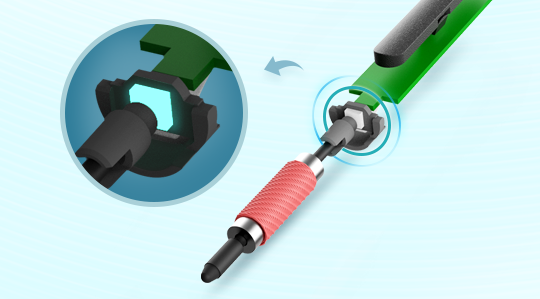

XENX Pen pressure sensor

Highly Accurate

XENX S1-500 pen is embedded with highly accurate pressure sensor that provides 8K levels of pressure sensitivity. Fast and stable MCU allows it to capture 360 set of pen data per second. The resolution of the EMR sensor meets 2540 lines per inch (100 lines per millimeters).

XENX S1-500 5-inch Color display

Full Color Display

The 5-inch TFT LCD display is protected with tempered glass. It supports 16.7M true color image that can help enterprises placing promotional materials on screen.

There are two on-device buttons which can be customized via our SDK to fit your business purposes.

SDK for Developers

XENX e-signature SDK is available for developers to integrate their own signature solution. Our SDK is compatible with most development platforms and our engineers will provide adequate assistance throughout the development cycle. Should you have any pre-sale or
post-sale enquiry, please contact us at

dev@xenx-tech.com.

XENX S1-500 Dynamic Signature Verification

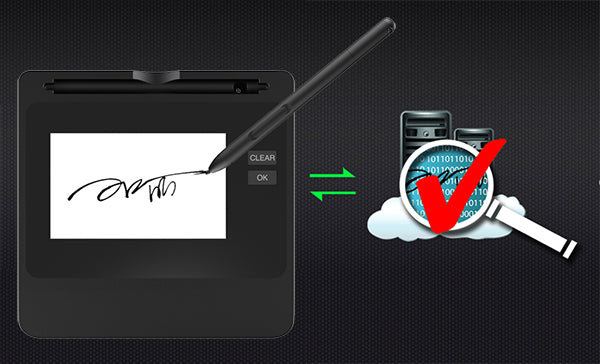

Dynamic Signature Verification

With Dynamic Signature Verification (DSV), the captured biometric signature data is automatically verified dynamically against signature specimen stored encrypted in the systems database. If you want to know more about our DSV solution, please contact us at

dev@xenx-tech.com.

  • Download BookxPDF

    Please check here to download BookxPDF for XENX S1-500 Signature Pad.

  • Developer Support

    If you have any question related to e-signature software integration, please contact our development team at dev@xenx-tech.com.
